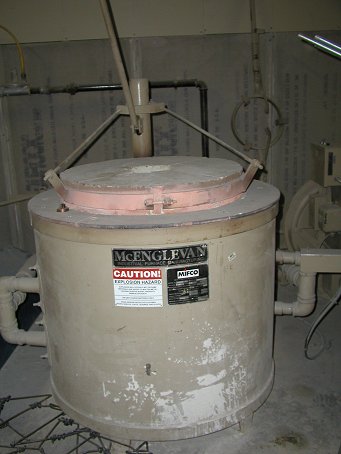

MIFCO Furnace B-1501 - $10,654

B-1501 Melting Furnance with Safety Systems. 230 Volt, 3 phase.
Used only three (3) times to test.

This melter holds about 450 pounds of yellow brass per melt The chamber dimensions are 21 inches diameter by 24 inches deep. The working height from the floor to the top of the lid derrick is 51 inches. With the blower mounted in the in-line position, the furnace measures 66 inches from the front surface of the shell to the inlet edge of the gas solenoid. You should have an extra 12 inches to plumb in the gas line, so figure a minimum of 78 inches from the wall to the front edge of the furnace. The dimension the from the left burner inlet to the back edge of the blower is about 83 inches, so you can figure floor space requirements at about 66 inches by 83 inches. The overall height of the turbo blower is 31 inches. The center of the 2.5 inch pipe union which connect the flower mixer assembly to the furnace manifold is 16.5 inches.

Model: B-1501
Crucible Size: No. 90 thru No. 150
Capacity Per Melt: 450 lbs/150 lbs.
Crucible Chamber: 21" Diameter, 24"" Deep
Floor Space: 42" x 83"
Blower & Motor Rating: 230 CFM/2HP
Gas Rating in 1000 BTU 6" to 9" W.P.: 1,200,000
Gas Line Size: 2"
Gas Valve Size: 1.5"
Approximate Weight: 2666 lbs
